CAPABILITIES

Engineering

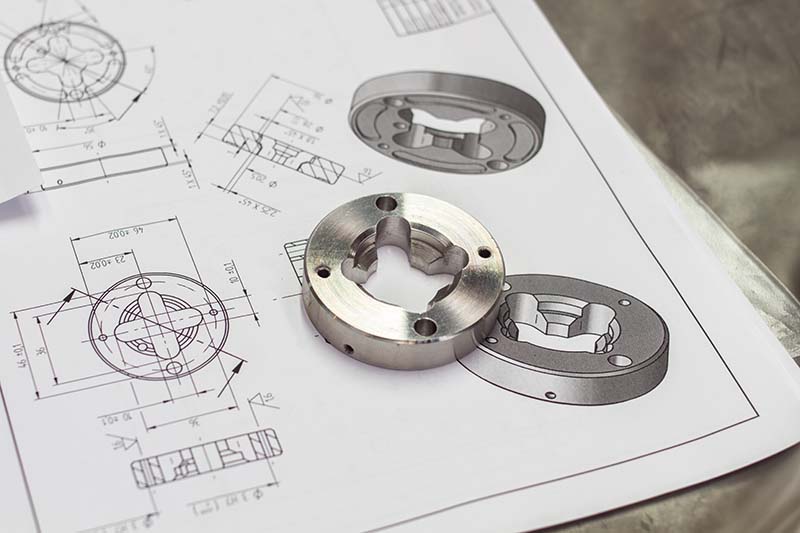

Machined part placed on top of it's blueprint

Metal Fabrication

Laser Cutting

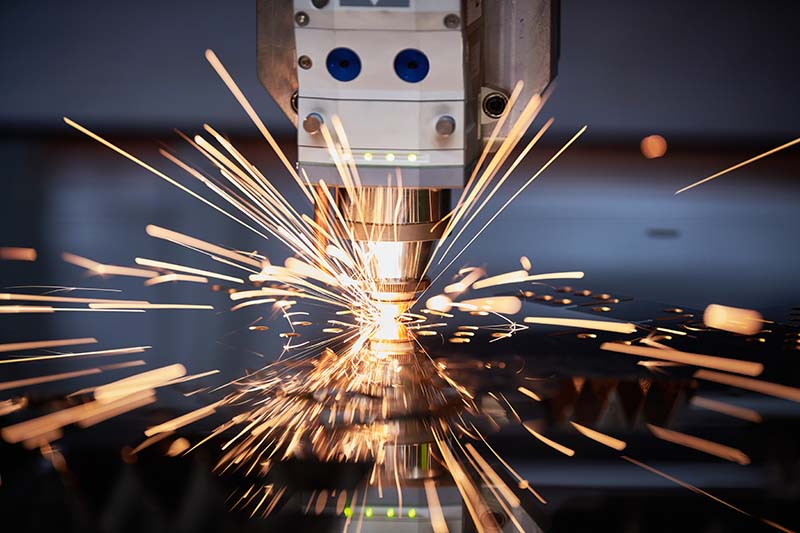

Laser cutter cutting out a piece of material

Water Jet Cutting

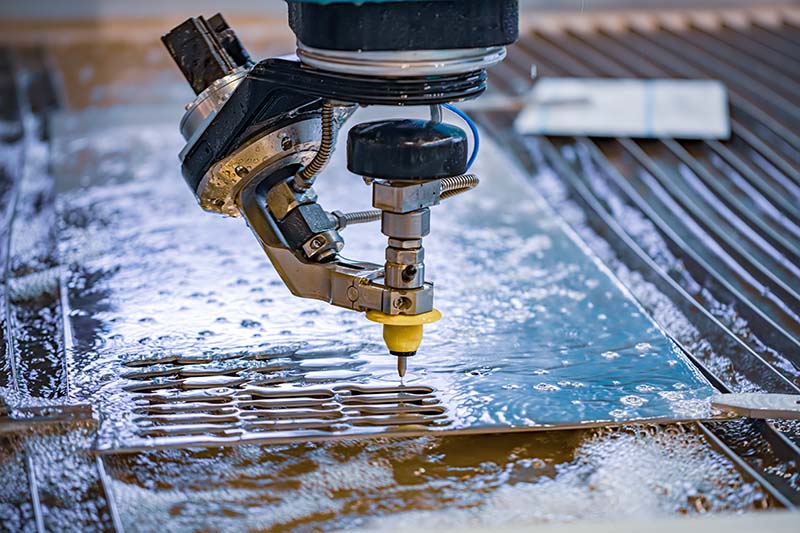

Water jet machine cutting out a part from a piece of material

Custom Machining

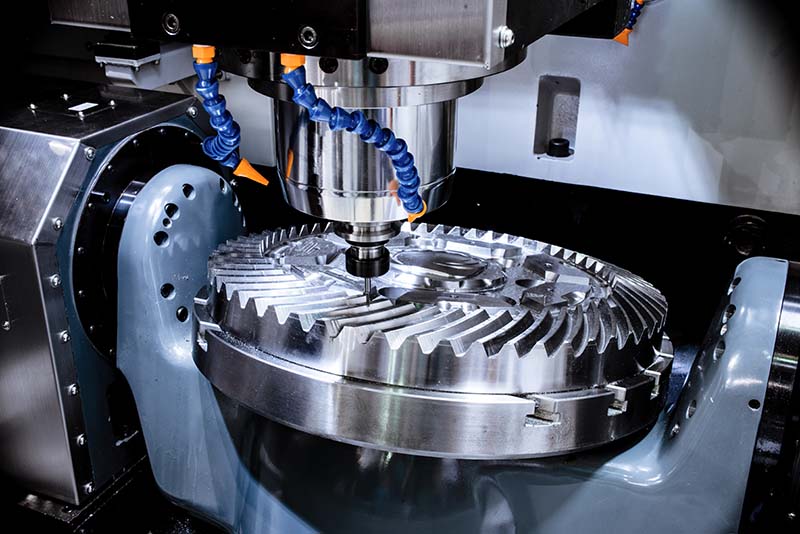

Metal cutting machinery cutting out an intricate gear

Assembly

Quality Control

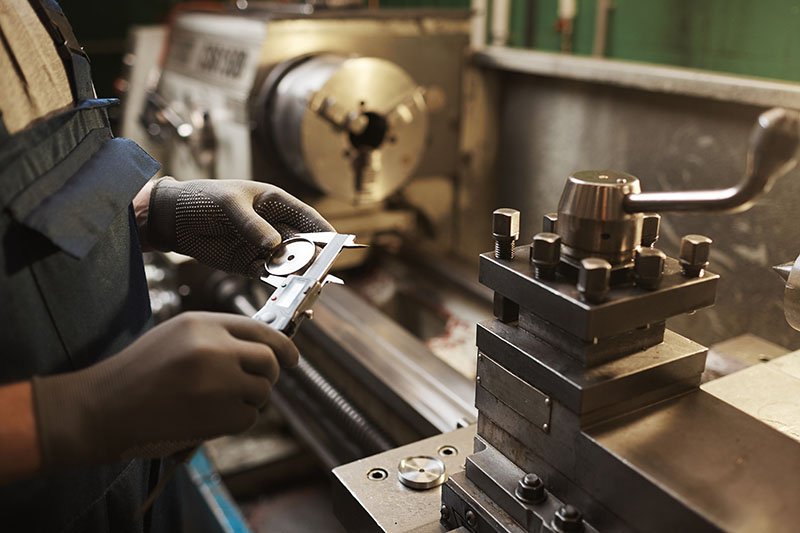

Metal Fabrication Quality Inspection tools

WHERE THE MANUFACTURING PROCESS BEGINS

Engineering

Understanding the full scope of what our customers are trying to achieve, and delivering an accurate print for their needs is what makes Diamond Metal Products one of the finest team of engineers in the industry.

Our engineers bring with them decades of experience and have the authoritative knowledge to recommend the best processes, materials and finishes to produce a top quality product.

CUSTOM PRINT DEVELOPMENT

If you don't have an engineer on staff, we can assist you every step of the way.

We understand how crucial it is to prepare a precise print layout since even an error as small as one-thousandths of an inch off will result in a rejected part. If the engineer does not get the prints right from the start, there are guaranteed problems throughout the production.

The key to a quality end-product is thorough analysis and precise calculations during the development of your product prints, and with a 99.9% success rate for producing accurate prints, our team of skilled engineers are qualified to deliver a quality end-product.

EXISTING PRINT VERIFICATION

In some cases, you may not need a print designed by us.

If you have an engineer on staff and are simply looking for a production partner, we are happy to receive your existing prints.

We'll provide an additional layer of verification and peace of mind before it hits our production floor, saving everyone time and money.

REVERSE ENGINEERING

Do you have a part with no prints?

Not only are we experts in engineering a product from the ground up, but we are also capable of reverse engineering.

Bring us your part(s), and we will measure it, reconstruct it as a 3D model, and provide a print back to you with your completed parts.

CAD Software

We have multiple up-to-date CAD software that we use, including, but not limited to the following:

SolidWorks®
GibbsCAM®

Accuracy Within a Thousandth of an Inch

DIVIDER LINE

Custom & Turnkey Solutions

Precision Metal Fabrication

Since 1983, our customers have relied on us to produce their precision metal products.

They come to us because we are fully equipped with a comprehensive catalog of metalworking services, from laser cutting and CNC machining, to grinding and welding.

Each part that goes through the metal fabrication process also goes through a quality inspection to ensure that every single piece of metal output is compliant with ISO 9001 and our quality assurance guidelines.

Metal fabrication services range from low-volume prototype to high-volume production runs.

Cutting

Grinding

Forming

Rolling

Welding

Hardware

Comprehensive Metalworking Services

Precision Metal Fabrication

Equipment List

Shears

CNC Turret Punch Presses

CNC Press Brakes

Gauge Rollers

Power Notchers

Straight Line Sanders (with Dust Collector)

Aluminum Grinding Booth

Various Sanders

Presses with Auto Feed

Vertical Machining & Tapping Centers

Welders Mig and Tig

divider line

Custom sheet metal parts in a variety of materials

Laser Cutting

Laser cutting is a technology that uses a laser beam to cut materials by directing the output of a high power laser at the material to be cut.

Laser cutting is best suited for 2D designs with multiple radius' and irregular shapes. Laser parts generally remain flat and burr free with minimal heat distortion.

Lights Out

We are capable of running "Lights Out" operations.

This process provides increased throughput with automated, high-speed cutting and optimum positioning accuracy.

Increased Efficiency

Eliminate costly tooling charges
Quicker turnaround
Transfer various file formats directly into our laser program

Performed with Precision

Our two Strippit LVD lasers are backed by 4,000 Watt resonators
The cutting tolerances are as close as ± .003" and repeatability as close as ± .001"

Material Accomodations

Stainless steel, steel, aluminum and spring steel are highly suitable for laser cutting
Our Laser machines can accommodate a host of materials, material thicknesses and sheet dimensions:
- Steel up to 3/4" thick
- Aluminum up to 3/8" thick
- Stainless Steel up to 1/2" thick

Fast and Accurate Laser Cut Services with Short Lead Times

Laser Cutting

Equipment List

LVD Axel Laser - 4000 Watts 1

LVD Strippit Orion 3015 Plus - 4000 Watts 1

divider line

Eliminates Metal-On-Metal Contact

Water Jet Cutting

Our water jet cutting services offer a cost-effective and on-demand solution for your metals manufacturing needs.

By using a waterjet for cutting, we can achieve amazing accuracy without metal-on-metal contact for precise results that avoid heat damage and inaccuracies.

Benefits of Water Jet Cutting

Water jet cutting uses a high pressure stream of water (60,000 psi) and can contain abrasive particles.

It will produce reasonably good edges, no burrs and eliminates the need for a secondary finishing process.

An important benefit of the water jet is the ability to cut material without interfering with the material's inherent structure as there is no "heat-affected zone" or HAZ. Minimizing the effects of heat allows metals to be cut without harming or changing intrinsic properties (distortion).

Accuracy

Our water jet cutting has incredible accuracy down to 0.015".

Material Accomodations

Water jet cutting can be used on a variety of materials, and we can accommodate all types of metal.

Cuts up to 8" thick
Pieces up to 6' x 12'

Smooth Finishings, Tight Tolerances, Complex Shapes

Water Jet Cutting

Equipment List

Flow Water Jet 1

DIVIDER LINE

All Your Machining Needs In One Spot

Custom Machining

We provide a complete machining facility to fulfill your machining needs.

Our skilled, experienced machinists can program or operate our various state of the art machining centers, mills, and turning centers. We now have full CAD-CAM Programming capabilities and can import CAD files directly to our machines.

Machining Tools

Lathes
Milling Machines
Drill Presses

Machining Capabilities

Production Scale

Prototype
Short Run
Long Run

Traditional Machining Processes

Turning
Drilling
Boring
Milling
Tapping
Reaming
Broaching
Sawing

A Power-Driven, Complete Machining Facility

Custom Machining

Equipment List

Vertical Machining Centers

Turning Centers (with Bar and Live Tooling)

Manual Lathe

Manual Mills

Surface Grinders

Various Saws

Drillpresses

Bench Grinders

Tool Grinder

DIVIDER LINE

Single Source Supplier

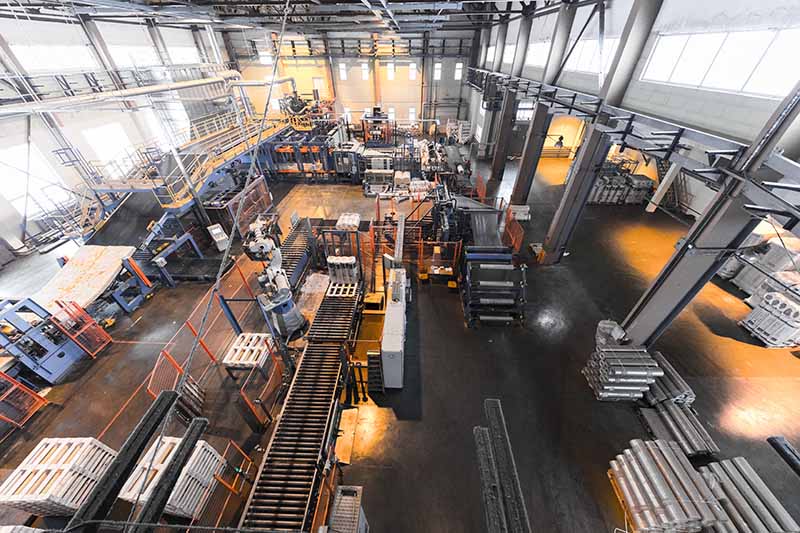

Assembly

We've been providing single source custom engineering and manufacturing services to a variety of industries for over 38 years, and that includes assembly.

Our assembly offerings provide us the ability to:

Assemble Complete Orders
Assemble as Blanket Orders
Assemble as Just-In-Time Orders.

We're here to make your job easier so that you may direct your energies to the important aspects of your business.

REDUCE COST & FRUSTRATION

Our production reduces your labor, overhead and problems with working with multiple vendors.

Our knowledge and experience allows us to provide you with something as basic as a sub assembly and as technical as a full assembly.

MECHANICAL AND LIGHT ELECTRICAL ASSEMBLY

We have the capability to work with various mechanical and light electric requirements such as:

Wire Harnesses
Circuit Boards
Fiber Optic Cables

These qualifications set our team apart by truly being a single source supplier.

From Production to Assembly

Assembly

Equipment List

Pop Rivet Tools

Pop Riveting Systems for Coilated Rivets

Various Drills, Screw Guns, Threaded Insert Power Tools

DIVIDER LINE

Metal Types and Shapes

Materials

Below are the three core metal types (and their shapes) that we work with day in and day out.

Aluminum

Angles

Bars

Plates

Expanded

Sheets

Tubing

Wire

Steel

Angles

Bars

Plates

Expanded

Sheets

Tubing

Wire

Hot Roll/Cold Roll

Stainless Steel

Angles

Bars

Pipe

Plates

Expanded

Sheets

Tubing

Coil

Raw and Manufactured Materials

Additional Materials

ABS

Acetal

Acrylic

Brass

Bronze

Casting

Ceramic

Copper

Extrusion

Gand PVC

Garolite

Nylon

Plastic

Polycarbonate

Polypropylene

Rubber

Teflon

DIVIDER LINE

COMPREHENSIVE LIST (A-Z)

Processes

Acetylene Torches

Aluminum and Stainless Steel

Aluminum Wire Feed Welding

Annealing

Assembly

Broaching

CNC Milling

CNC Turning (Lathe)

Countersinking

Deburring

Drilling

Engrave

Etch

Forming

Grinding

Hardware

Heat Treating

Helicoil Tapping

Honing

Inspection

Knurling

Laser Cutting

Machining

Notching

Plasma Cutting

Punching

Reverse Engineering

Riveting (Pop and Solid)

Sawing (Band and Cold)

Shearing

Soldering

Spotweld (Steel)

Stress Relieving

Surface Grinding

Tapping

Thread Milling

Tube Bending

Tumbling

Waterjet Cutting

Welding (Mig and Tig)

DIVIDER LINE

COMPREHENSIVE LIST (A-Z)

Finishes

Alodine

Anodize (any color)

Bright Dip

Chemical Film

Chromate

Electroless Nickel

Electropolish

Hardcoat

Iridite

Nickel

Oxide

Paint

Passivate

Powder Coat

Sand Blast (bead and/or glass)

Silkscreen

Zinc

DIVIDER LINE

B2B PARTNERSHIPS

Looking for a quote for your business needs?

Give our Sales Team a call today for a quote!

763-757-8353
